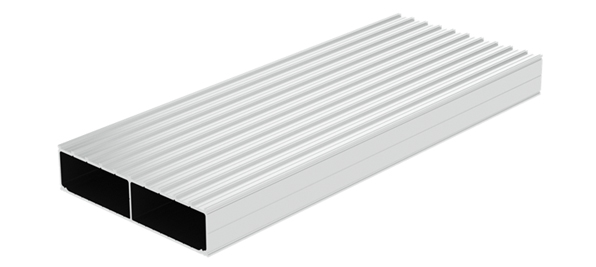

120 DECK

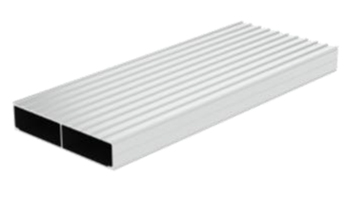

120x15T (Unpainted)

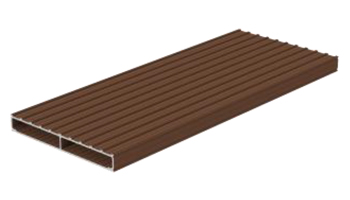

120x15T (Coating)
Venture Nara - 120x25T (Unpainted)
Venture Nara - 120x25T (Coating)120 DECK
Aluminum decking is the best choice for environmental sustainability and pedestrian safety.
| Product Code | Coating Status | Application |
|---|---|---|
| ALUCO-DP***N | Unpainted | Walkways, Coastal Paths |
| ALUCO-DP***P | Unpainted | Interior Flooring |
| Width(W) | Thickness(T) | Length(L) |
|---|---|---|
| 120mm | 15T/25T | ~4000mm |
| Standard | Result | Issuing Authority | |
|---|---|---|---|
| Load Capacity | 11.1 or higher | 24.4 | Korea Testing & Research Institute |
| Slip Resistance | 0.4 or higher | 0.53 | Korea Testing & Research Institute |
- Available in 15T and 25T thickness, length selectable from 100-4000mm
- Coated with urethane paint, additional color inquiries welcome

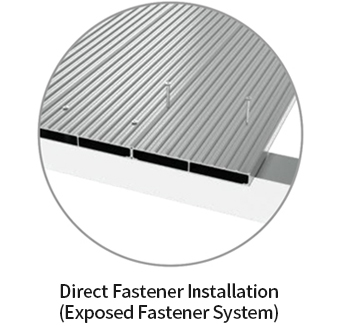

- Deck directly fastened to joists with screws
- Finishing materials and other components, joists sold separately
- Venture Nara registered product
Installation Method Aluminum 120mm Deck Installation (Same for 25T, 15T)

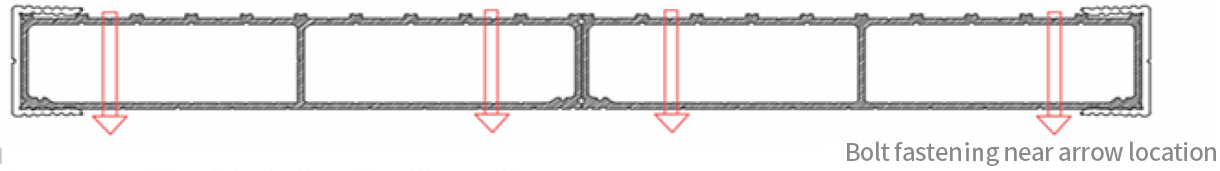

- Place 120mm deck plate on joists and secure with fastening screws in arrow direction.
- 120mm deck plate installation is similar to pressure-treated wood or composite lumber, but joist spacing differs.

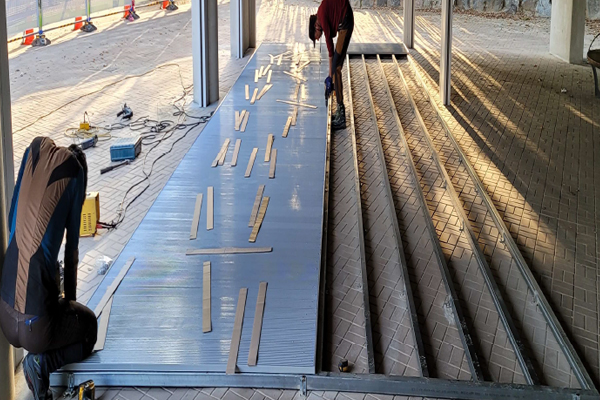

- Install by spreading deck plates one by one from side to side, finish ends with end material after installation.
* Slope Finishing Material: Applicable to 15T only
* ㄷ-Channel Finishing Material: Applicable to 15T, 25T
* Slope Finishing Material: Applicable to 15T only
* Slope Finishing Material: Applicable to 15T only

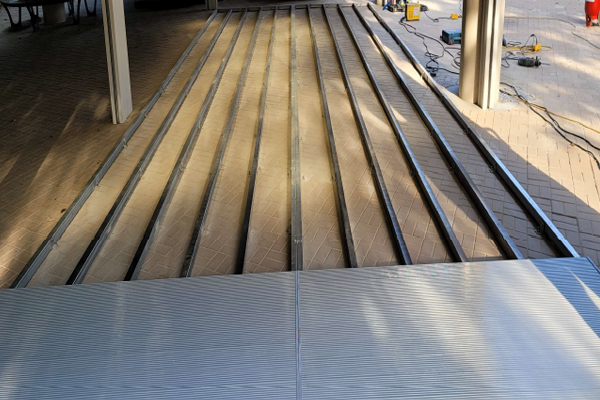

Before Installation

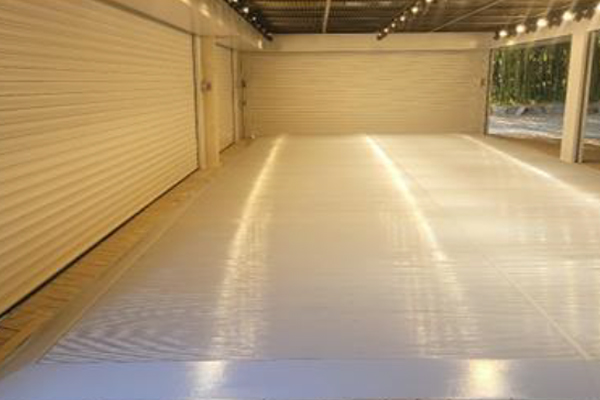

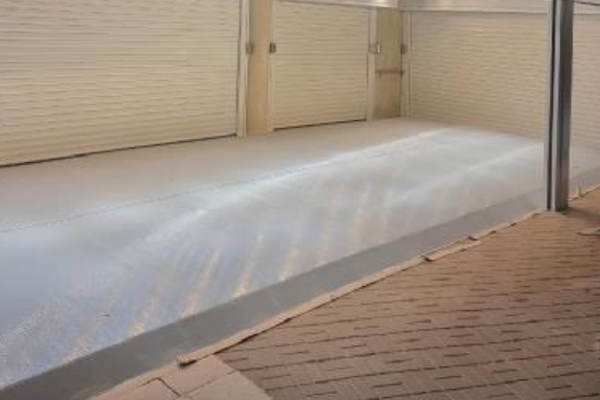

After Installation
