DNP DECK
DNP Cover
DNP Flat Cover
DNP Front View
DNP ㄷ-Channel Finishing Material

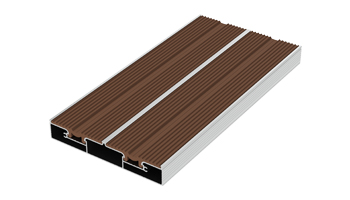

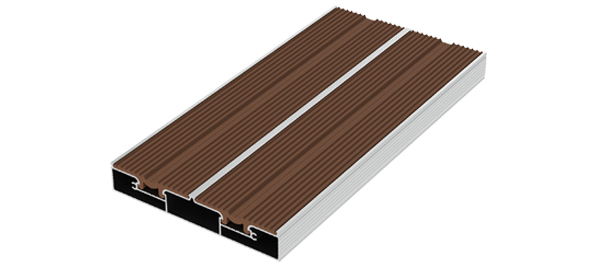

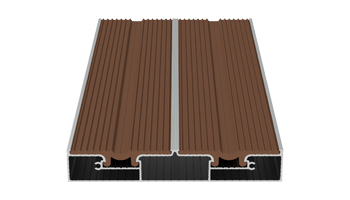

DNP DECK
Timeless Beauty Create sophisticated spaces with aluminum unpainted non-slip decking.
| Width(W) | Thickness(T) | Length(L) |
|---|---|---|
| 150mm | 25T | ~4000mm |
| Standard | Result | Issuing Authority | |
|---|---|---|---|
| Load Capacity | 11.1 or higher | 14.8 | Korea Testing & Research Institute |
| Slip Resistance | 0.4 or higher | 0.69 | Korea Testing & Research Institute |
- NO PAINTING aluminum deck
- Non-slip deck cover (2PAD) snap-fit type (cover: non-slip/flat)
Key Features

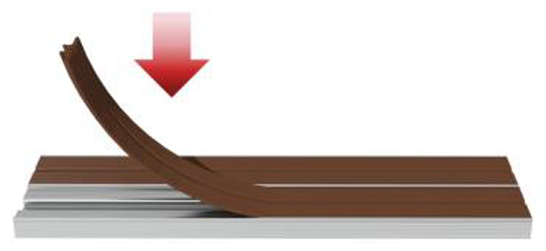

Enhanced Constructability – Eco-Friendly Deck Cover Installation
Enhanced Stability - Anti-Slip and Natural Drainage Structure

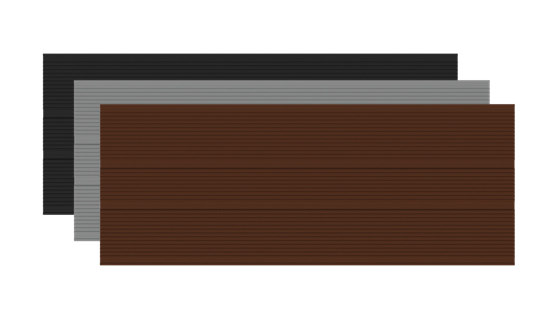

Additional Color Inquiries

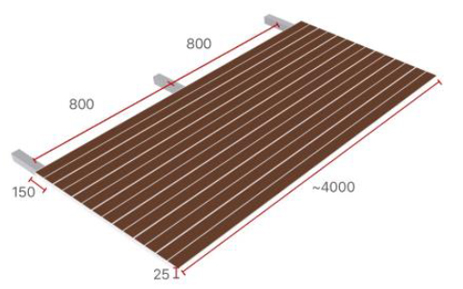

Size and Joist Spacing
Deck Size: 150x25T / Joist Spacing: 800mm
- Aluminum Easy One Deck with enhanced stability and constructability through color expression and improved slip resistance using a single deck cover
- Deck with no exposed fasteners, deck cover available in non-slip and flat types
- Deck cover material: PVC/PE composite compound
- Cutting available from 100-4000mm length
- Finishing materials and other components, joists sold separately
- Primarily used for products requiring stairs or color options

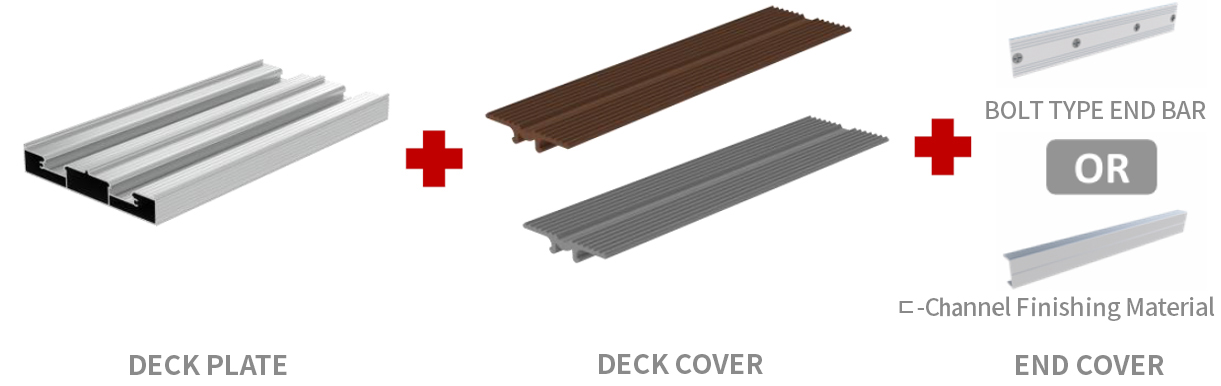

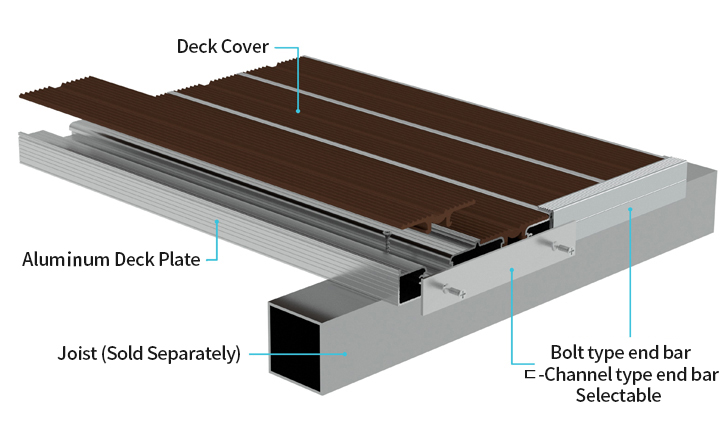

Product Configuration : DECK PLATE + BOLT COVER + DECK COVER + Side Finishing Material
- Additional Color Inquiries
Installation Examples
