Pedestrian/Sidewalk Grating

Pedestrian/Sidewalk Model Thickness Load Capacity Test Notes
Standard Result
CNB GRATING ALUCO-CNB 25T 11.1kN 11.4kN Venture Nara Registered Product
25927727~25927738
NB GRATING ALUCO-NB 25T 11.1kN 18.7kN Venture Nara Registered Product
25927727~25927738
DNB GRATING ALUCO-DNB 25T 11.1kN 22.1kN Venture Nara Registered Product
25927739~25927750
BAR GRATING ALUCO-BG3** 30T 11.1kN 21.8kN Venture Nara Registered Product
23825383~23825404,
23825413~23825414
DECK GRATING ALUCO-DG**P 25T 11.1kN 24.7kN -

CNB BAR GRATING

CNB, NB, DNB are gratings but can also be used as decking

CNB GAP5 By Size

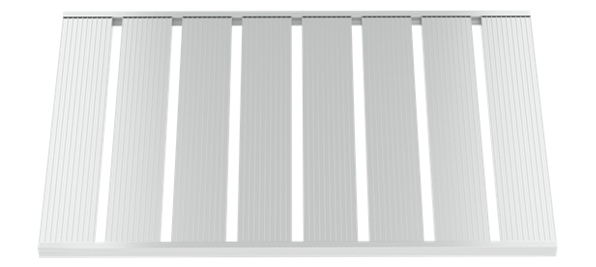

CNB Deck 500 x 1000

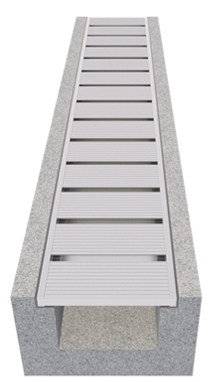

CNB Drainage Installation Horizontal
CNB Joist Installation
CNB
It can be used for roadway applications by modifying bottom aluminum square tubing and increasing quantity
Product Code Coating Status Application
ALUCO-CNB Unpainted Drainage Cover
Width(W) Thickness(T) Length(L)
150mm~ 25T~ ~4000mm
  • Weld-free modular grating with color expression through color covers
  • Drainage GAP selectable from 0-25mm
  • Finishing materials and other components, joists sold separately

NB BAR GRATING

CNB, NB, DNB are gratings but can also be used as decking

NB Standard Type GAP5 by Size

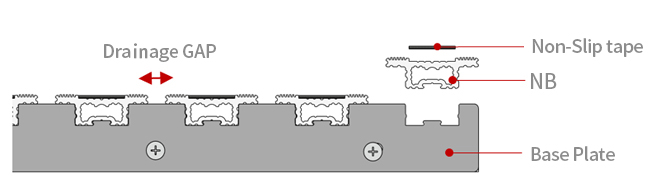

NB Non-Slip Attached Type (Black)
NB Drainage Non-Slip Attached (Gray)
NB Size 500 x 1000
NB (Pedestrian Use)
Product Code Coating Status Application
ALUCO-NB Unpainted Drainage Cover
Width(W) Thickness(T) Length(L)
150mm~ 15T~ ~4000mm
  • Weld-free modular grating with enhanced slip resistance, available in standard type and non-slip tape attached type
  • Standard type without non-slip tape application, non-slip tape attachment optional
  • Drainage GAP selectable from 0-25mm
  • Finishing materials and other components, joists sold separately

DNB BAR GRATING

CNB, NB, DNB are gratings but can also be used as decking

DNB GAP9 By Size (ㄷ-Channel Finishing Material)
DNB Deck
DNB Drainage Installation
DNB Assembly
DNB
It can be used for roadway applications by modifying bottom aluminum square tubing and increasing quantity
Product Code Coating Status Application
ALUCO-DNB Unpainted Drainage Cover
Width(W) Thickness(T) Length(L)
150mm~ 25T~ ~4000mm
  • Weld-free modular grating with diverse color expression and anti-slip capability through non-slip cover application
  • Drainage GAP selectable from 0-25mm
  • Standard color is brown (please inquire for other colors)
  • Finishing materials and other components, joists sold separately

BAR GRATING (A type, B type)

A-Type (30T)
B-Type (30T)
BAR GRATING (A type, B type)
30T (Pedestrian Use, Sidewalk Use)
Product Code Coating Status Application
ALUCO-CNB Unpainted Drainage Cover
Width(W) Thickness(T) Length(L)
150 ~ 1,000mm 30T 1,000m
  • Weld-free grating with visible bottom in GAP 25mm, 33mm types
  • Finishing materials and other components, joists sold separately
  • Venture Nara registered product
Aluminum Bar Grating Features
  • Aluminum material prevents rust and resists corrosion.
  • Lightweight for excellent workability.
  • Aluminum bar grating is environmentally friendly.
  • Custom fabrication available in desired shapes (rounded).
Aluminum Bar Grating Assembly Sequence
Insert bearing bar into grating I-bar hole
Rotate bearing bar 90 degrees to secure (weld-free)
Assemble ㄷ-channel finishing material
Aluminum Bar Grating Fastening Method
Convertible to aluminum bar grating non-slip type
Bar Grating Drainage Cover Installation Image

DECK GRATING

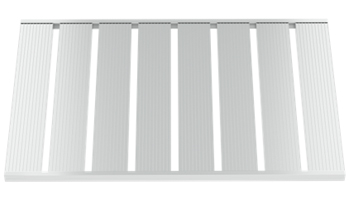

DECK GRATING (Standard)
GAP 10~25MM

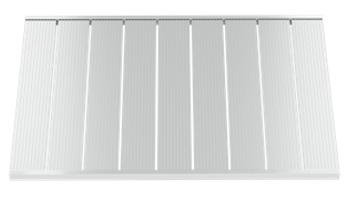

DECK GRATING (Standard)
GAP 5MM
MULTI DECK GRATING (Standard/Safety)
GAP 5~25MM
DECK GRATING
Product Code Coating Status Application
ALUCO-CNB Unpainted Drainage Cover
Width(W) Thickness(T) Length(L)
150mm ~ 25T ~ ~ 4,000m
  • Weld-free grating with adjustable drainage gap
  • Finishing materials and other components, joists sold separately
