Aluminum unpainted non-slip deck that significantly improves upon the limitations of painted products, eliminating the need for coating

Technology Background

Wood Deck

Corrosion, splitting
Periodic maintenance required
Fire vulnerability
Waste generation

Composite Deck

Warping, discoloration
Ongoing reinstallation and maintenance
Toxic gas emission during fires
Waste generation

Aluminum Deck

Paint peeling on coated products
Glare from uncoated products
Potential safety hazards in wet conditions
Excessive repainting costs

Innovation Deck Development

Next-generation deck system development completed—delivering excellent performance and structural safety with eco-friendly features while ensuring safe environments and reducing public sector costs

Innovative Product Introduction

This aluminum unpainted non-slip deck addresses all the limitations of pressure-treated wood, composite lumber, and traditional aluminum decks.Applied technology ensures stability and performance in diverse environments through anti-slip features, durability, and modular design.

Unpainted Product

Addresses paint peeling issue - Deck cover application enables diverse color and texture expression - Deck cover replacement allows various on-site applications through deck cover material changes

Corrosion Resistance

Aluminum A6063-T5 material resistant to corrosion and moisture, high-strength lightweight material without warping or splitting, eco-friendly PVC/PE composite compound deck cover

Constructability

Weld-free assembly structure with wide joist spacing for quick and easy installation, modular construction reduces costs and shortens construction period, removable deck cover for outstanding maintenance

Stability

Double connection structure with no exposed fasteners prevents rust, enhanced anti-slip on deck cover surface improves stability, soft deck cover prevents fall-related safety accidents

Timeless Beauty Create distinguished spaces with aluminum unpainted non-slip decking.

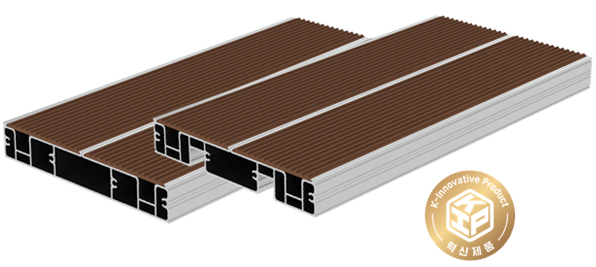

INNOVATION DECK

Product Code	Coating Status	Application

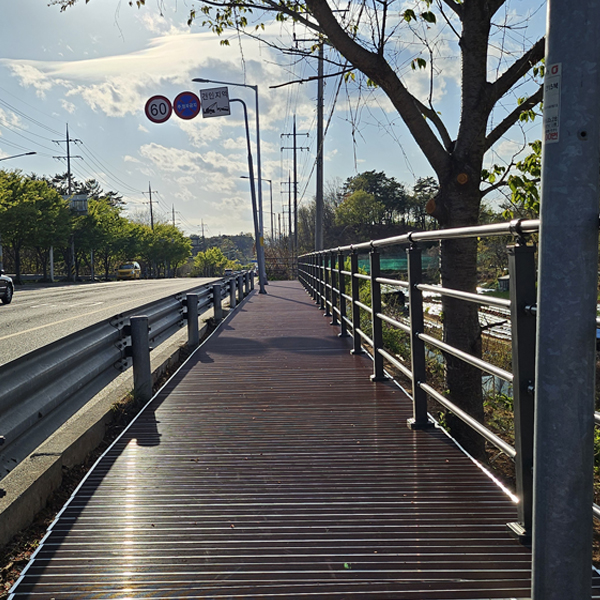

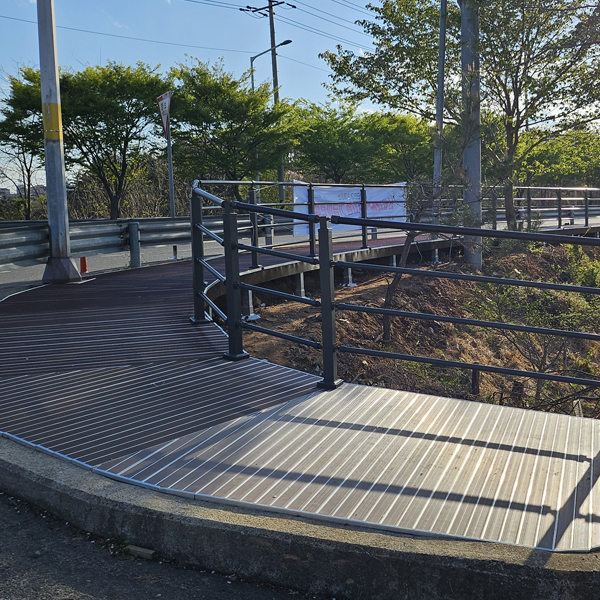

ALUCO-MDPC1525	Unpainted	Walkways, Coastal Paths
ALUCO-MDPC1525N	Coating	Interior Flooring

Width(W)	Thickness(T)	Length(L)
150mm	25T	~4000mm

	Standard	Result	Issuing Authority
Load Capacity	11.1 or higher	27.9	Korea Testing & Research Institute
Slip Resistance	0.4 or higher	0.7	Korea Testing & Research Institute

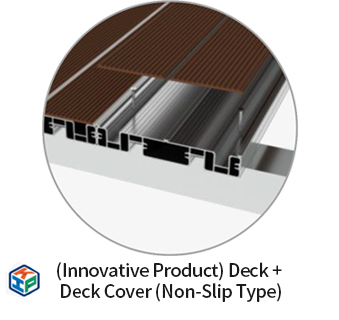

Aluminum unpainted non-slip deck with dual deck cover enabling color expression without painting and enhanced slip resistance for improved stability
Available as both Innovation Marketplace product and Venture Nara product

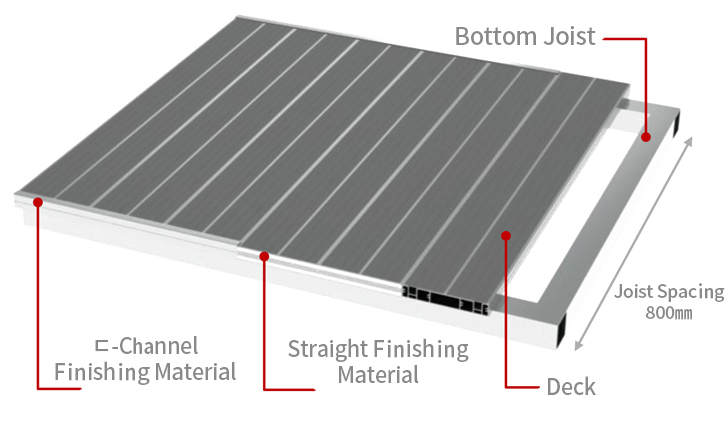

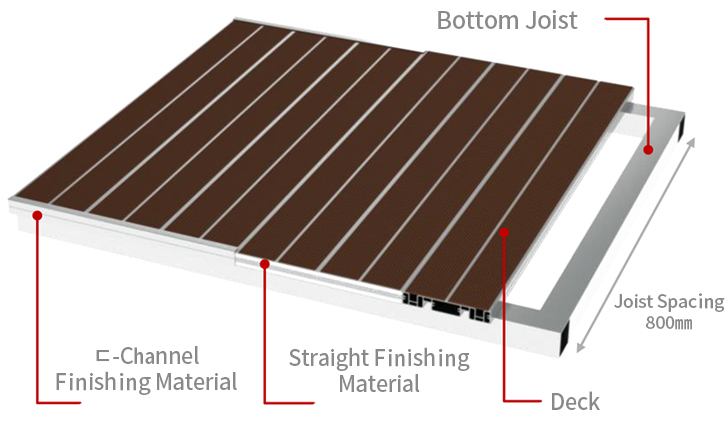

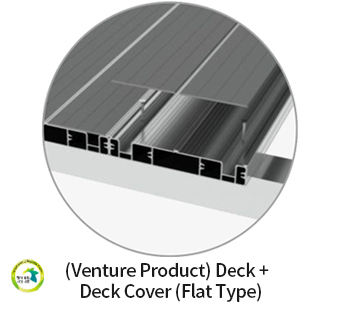

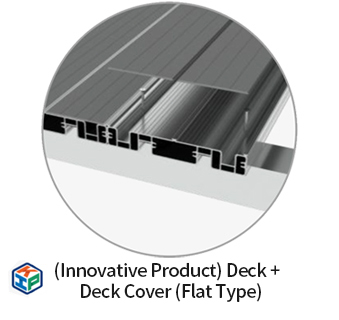

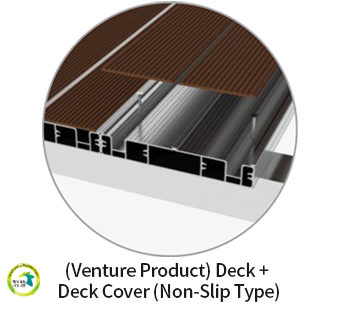

Deck with no exposed fasteners, deck cover available in non-slip and flat types
Deck cover material: PVC/PE composite compound (special adhesive tape installation)
Length selectable from 100-4000mm
Finishing materials and other components, joists sold separately

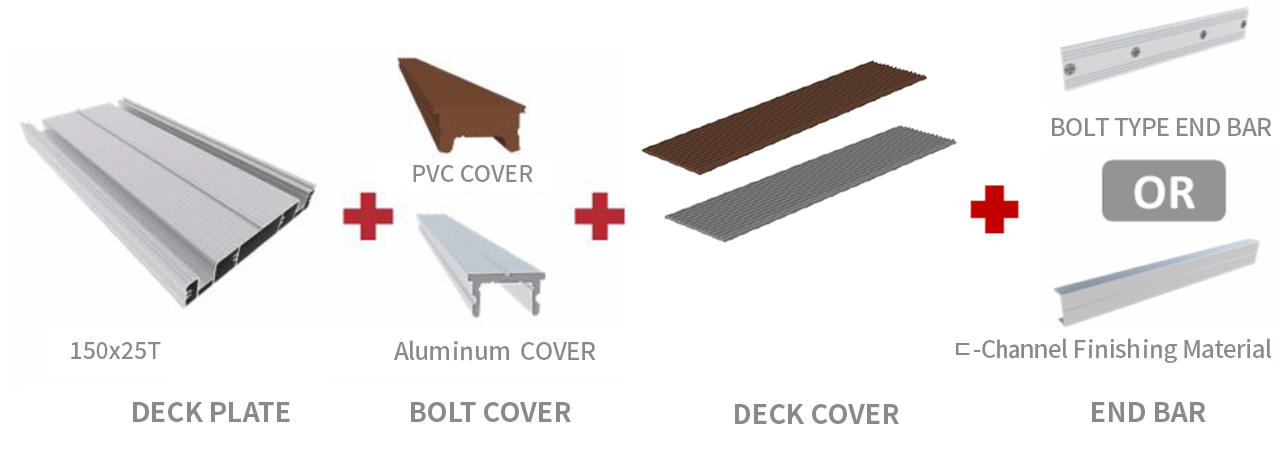

Product Configuration : DECK PLATE + BOLT COVER + DECK COVER + Side Finishing Material
