Aluminum Product Advantages
Product Overview
ALUCOKOREA's eco-friendly aluminum grating and deck products meet NORSOK M-003 Structural Design standards, achieving a tensile strength of 115 MPa, a load capacity of 400kg/m², and a deflection of L/200. They also comply with the Korean standard SPS KMIC 007 2014 (Korea Metal Industry Cooperative) design load recommendations for pedestrian use (T2), vehicular use (T14), and heavy load (T20). For fire and safety compliance, our products meet international NMA and USCG standards.
| Material | Tensile Strength | Yield Strength | Elongation | Slip Resistance | Load Capacity Testing |
|---|---|---|---|---|---|
| 6063-T5/T6 | 158/244 N/Mm | 114/214 N/mm2 | 15/14% | 0.53 | T2,T14,T20 TEST Completed |
Material
- Marine Aluminum Alloy (A 6063-T5/T6) is a high-strength, eco-friendly material that's both lightweight and aesthetically appealing. Through atmospheric oxidation, it naturally forms an aluminum oxide surface layer (Al₂O₃) that prevents corrosion while demonstrating exceptional resistance to salt, petroleum products, sulfur, sulfuric acid, acetic acid, and other chemical compounds.
- Material standards comply with NORSOK M-121 Aluminium Material and Korean standard KS D 6759 Aluminium Alloy 6063-T5/T6.
Certification Testing
- Load capacity testing completed by Korea KTR under SPS-KMIC-007-2014 (applied) standards for T2, T14, T20
-
KOLAS Certification :
Tensile Strength KS B 0802:2003 (12B specimen) 244N/mm² certified
Yield Strength KS B 0802:2003 (12B specimen) 214N/mm² certified
Elongation KS B 0802:2003 (12B specimen) 14% certified - Slip Resistance and Maximum Bending Load Testing Completed (per KS F 3230:2013 standards)
Aluminum Deck & Grating
Aluminum Deck & Grating
Corrosion-Resistant and Lightweight
Made from high-strength alloy (A 6063-T5/T6), our products are suitable for diverse applications and weigh less than 1/4 that of steel and 1/3 that of composite lumber.
Modular Assembly System
Our optimized weld-free design achieves reduced weight with improved productivity and quality.
Chemical Resistance
Excellent resistance to salt, petroleum products, sulfuric acid, acetic acid, and sulfur compounds.
Material Cost Savings
Wider joist spacing during fabrication and installation reduces material costs and simplifies modifications.
Comparative Product Table (Steel, Aluminum, FRP, SUS)
ALUCOKOREA's aluminum products eliminate the environmental concerns associated with steel welding and zinc galvanization. With strength equivalent to steel at only 1/4 the weight (25%), our products offer easy installation through complete weld-free assembly. (Comparison basis: L1000 x B1000 x H30, pedestrian use)
| No. | Item | Steel | Aluminum | FRP | SUS316 | Notes |
|---|---|---|---|---|---|---|
| 1 | Material | SS400 | A6063-T5/T6 | Fiberglass | SUS316 | High-Strength Alloy |
| 2 | Weight | 38.1kg/m2 (100%) | 9.5kg/m2 (25%) | 19.5kg/m2 (51%) | 38.1kg/m2 (100%) | abt 25% |
| 3 | Strength | 500kg/m2 | 500kg/m2 | 500kg/m2 | 500kg/m2 | Optimized Design |
| 4 | Corrosion Protection |
Galvanizing | Natural Oxide Layer | Synthetic Resin | X | Oxide Layer (Protective Film) |
| 5 | Method | Welding/Galvanizing | Simple Assembly | Molding (Fiberglass) | Welding | |
| 6 | Lead Time | 30 days | 5 days | 30 days | 30 days | Rush Orders (24 hours) |
| 7 | Modification | 5 hours (Cutting, Welding, Galvanizing) | 30 minutes (Wrench, Grinder) | Modification Difficult | 5 hours (Cutting, Welding) | Modification Easy |
| 8 | Disposal | Scrap Metal Processing | Recyclable | Waste Disposal | Recyclable |
Aluminum Deck vs. Standard Deck
Aluminum decking offers semi-permanent durability with 100% recyclable, eco-friendly materials that resist deformation and require no maintenance. Made from high-strength materials that exceed slip-resistance and maximum bending-load standards by over 200%, it provides strength equivalent to steel, with excellent resistance to wildfires and coastal salt exposure.
Installation Comparison: 1M x 6M Installation(6m2)
| Composite Deck / Pressure-Treated Wood / Natural Wood / Ceramic Deck |
|---|
| 50mm x 50mm Steel Square Tubing Required: 23 pieces at 6M |
| Fastening Bolts Required: 1,280 pieces |
| Waste disposal required upon completion |
| Composite Deck Weight: Approx. 7kg(1m) x 6m x 40 pieces = 1,680kg |
| 알루미늄 데크 |
|---|
| 50mm x 50mm Steel Square Tubing Required: 16 pieces at 6M |
| Fastening Bolts Required: 400 pieces |
| No waste disposal required upon completion / Waste disposal cost savings |
| Aluminum Deck Weight: 1.8kg(1m) x 6m x 40 pieces = 432kg |

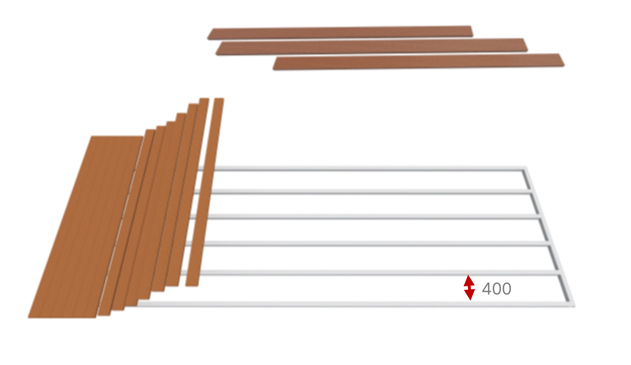

Deck Installation Comparison (e.g., 2m x 6m installation area, 150 x 25T innovative product application)
| Aluminum Deck Modular Installation | Composite Deck and Pressure-Treated Wood Deck | |
|---|---|---|
| Deck Installation Image |

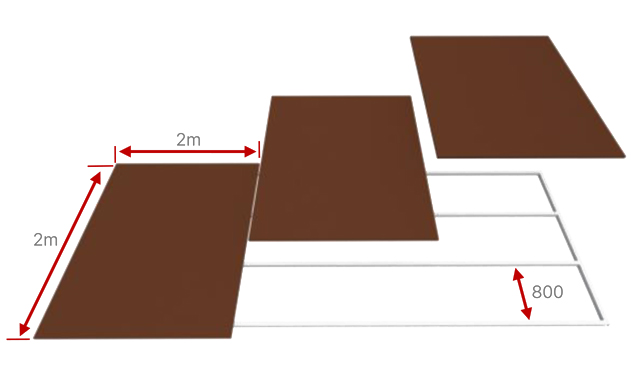

Installation of 3 sets of 2m x 2m modular decks |
Individual deck transport and repeated installation |

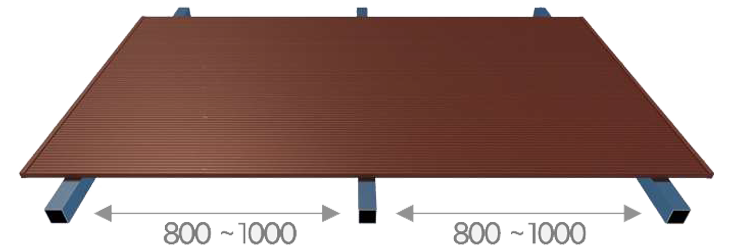

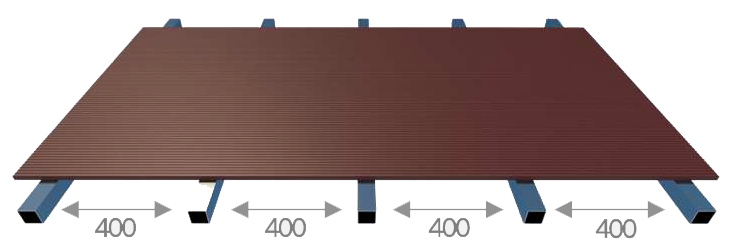

| Joist Spacing | 800mm | 400mm |
| Joist Material Quantity |
3 pieces at 6m Use 50x50x2.3T or greater galvanized square tubing |
6 pieces at 6m |
| Fastening Bolts | 160 pieces #8, #14 used |
480개 #8 used |
| Weight | 1 set [2kg(1m) x 2 x 13 pieces = 52kg] 52kg x 3set = 156kg |
7kg(1m) x 2m x 40 pieces = 560kg |
| Labor Input |  |
 |
| Deck Installation Time | Approximately 2~3hours | 2~3 days |
| Waste | Recyclable without waste disposal / Waste cost savings | Waste disposal required |

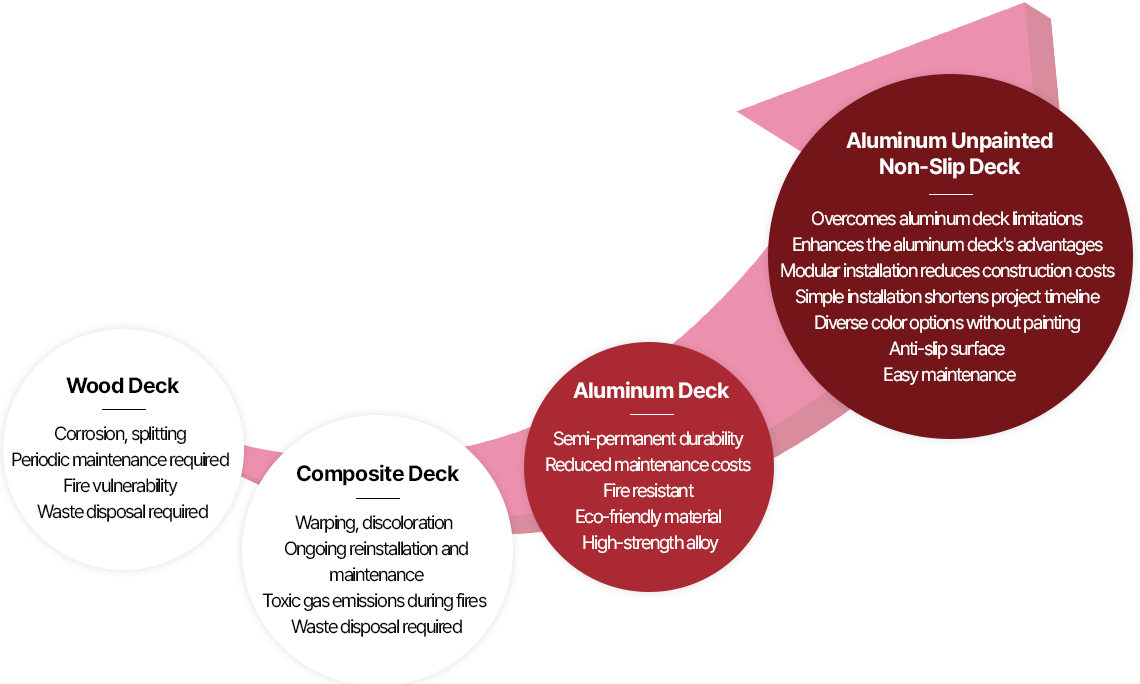

Competitive Advantages - vs. Composite Deck and Pressure-Treated Wood Deck
| Category | ALUCOKOREA Aluminum Unpainted Non-Slip Deck |
Composite Deck | Pressure-Treated Wood Deck |
|---|---|---|---|
| Durability | Aluminum: 20-30 years Deck Cover: 5-8 years |
8~10 years | 5~8 years |
| Environmental Friendliness | Aluminum 90%+ recyclable Special deck cover recyclable |
Waste Disposal Significant waste disposal costs |
Waste Disposal Significant waste disposal costs |
| Deformation | None | Warping, discoloration | Splitting, corrosion |
| Maintenance | Deck cover replacement | Reinstallation | Periodic maintenance and deck replacement required |
| Joist Spacing During Installation | 800mm Construction cost savings | 400mm | 400mm |
| Modular System Applied | Modular Manufacturing System Applied | Modular System Not Applicable | Modular System Not Applicable |
| Slip Resistance Standard: 0.4 |
0.7 / 0.73 | 0.4 ~ 0.6 | 0.4 ~ 0.5 |
| Maximum Bending Load Standard: : 3400 |
11390 | 4000~4700 | 3400~4200 |
| Load Capacity Standard : 11.1 |
27.9 | Not Measurable | Not Measurable |
| Product Photo |  |
 |
 |
Competitive Advantages - vs. Other Aluminum Decks
| Category | ALUCOKOREA | Company W | Company HG | Company HN |
|---|---|---|---|---|
| Coating | Uncoated | Coated (Fluororesin) | Coated (Powder) | Coated (Powder) |
| Joist Connection Fastener Bolts | #8~#14 | #8 | #8 | #8 |
| Double Connection Fastening System | Available | Not Available | Not Available | Not Available |
| Joist Spacing | 800mm | 400mm | 400mm | 400mm |
| Modular Manufacturing Capability | Modular Manufacturing System Applied | Modular System Not Applicable | Modular System Not Applicable | Modular System Not Applicable |
| Fall Risk | Minimal risk with special deck cover | Higher risk with aluminum surface | Higher risk with aluminum surface | Higher risk with aluminum surface |
| Maintenance | Deck cover replacement only | Complete coating removal Cannot be recoated with fluororesin coating |
Complete coating removal Cannot be recoated with fluororesin coating |
Complete coating removal Cannot be recoated with fluororesin coating |
| Product Photo |  |
 |
 |
 |
Aluminum Grating vs. Standard Grating
| Steel Grating | FRP Grating | Aluminum Grating | ||
|---|---|---|---|---|
| Material | Carbon Steel (Hot-Dip Galvanized) | Fiber-Reinforced Plastic | A6063-T5 Aluminum | |
| Weight ( 1m x 1m ) | Approx. 35~40kg | Approx. 10~14kg | Approx. 10~14 kg | |
| Installation | Heavy, higher labor costs | Lightweight, suitable for solo installation | Lightweight structure for easy installation | |
| Environmental Impact | Environmental pollution during galvanizing | Difficult to recycle, potential VOC emissions | Recyclable (carbon neutral compatible) | |
| Maintenance | Periodic maintenance required due to rust | UV-induced discoloration/corrosion, weak strength | No rust formation, cover replacement only | |
| Key Issues | Rust, recoating difficulties, weight, slippage | Dust during cutting, difficult processing | Surface scratches, slip hazard | Non-slip cover and non-slip tape aluminum grating development completed |
| Improvements | Enhanced zinc layer durability, rust-preventing coating | Added UV stabilizer, developed high-strength resin | Strengthened anti-slip surface treatment | |
Hybrid Deck Comparison Table
| Category | ALUCOKOREA Co., Ltd. | Company S | Company E | Company H | Company SO | Company I | Company AT |
|---|---|---|---|---|---|---|---|
| Product Photo |  |
 |
 |
 |
 |
 |
 |
| Material | Metal(A6063-T5) | Metal(A6063-T5) | Natural Wood(Malas) | Natural Wood(Malas) | Natural Wood(Kumea) | Natural Wood(Kumea) | Natural Wood(Merbau) |
| Dimensions (Unit: mm) | 1000x1000x75 | 1000x1000x70 | 1000x2000x21 | 1000x1000x74 | 1000x1000x71 | 1500x2500x71 | 1000x1000x71 |
| Certifications | Innovative Product | Excellent Performance Certification |
Excellent Performance Certification Environmental Label Green Technology KS Certification |
Excellent Procurement | Excellent Procurement | Excellent Procurement | Excellent Procurement |
| Delivery Terms (Period) | On-Site Installation Diagram(21 days~8 weeks) | On-Site Installation Diagram(60 days) | On-Site Installation Diagram(180 days) | On-Site Installation Diagram(180 days) | On-Site Installation Diagram(90 days) | On-Site Installation Diagram(180 days) | On-Site Installation Diagram(180 days) |
| Maintenance | Special deck cover replacement only | Complete repainting | New installation | New installation | New installation | New installation | New installation |
